BLISTER MACHINE VISION SYSTEM

Turnkey Vision Inspection System for Blister Machine (Model LMH36999.2025)

Proprietary blister inspection machine manufactured by LIEN MINH HUNG. 120 cycles/min, CCD USB 3 161fps color camera, 3% defect detection accuracy.

Max Speed

120 cpm

Precision

≤ 3%

Camera

CCD USB 3.0

FOV Area

210x310mm

Hotline: 0939 82 72 97

OFFICIAL MACHINE PHOTO

Model: LMH36999.2025

Lien Minh Hung Co., Ltd • Made in Vietnam

Product Visuals & Engineering Schematics

Inspection Hardware & Operational Demonstration

High-resolution schematics, optical sub-assembly diagrams, and defect classification for pharmaceutical blister packaging.

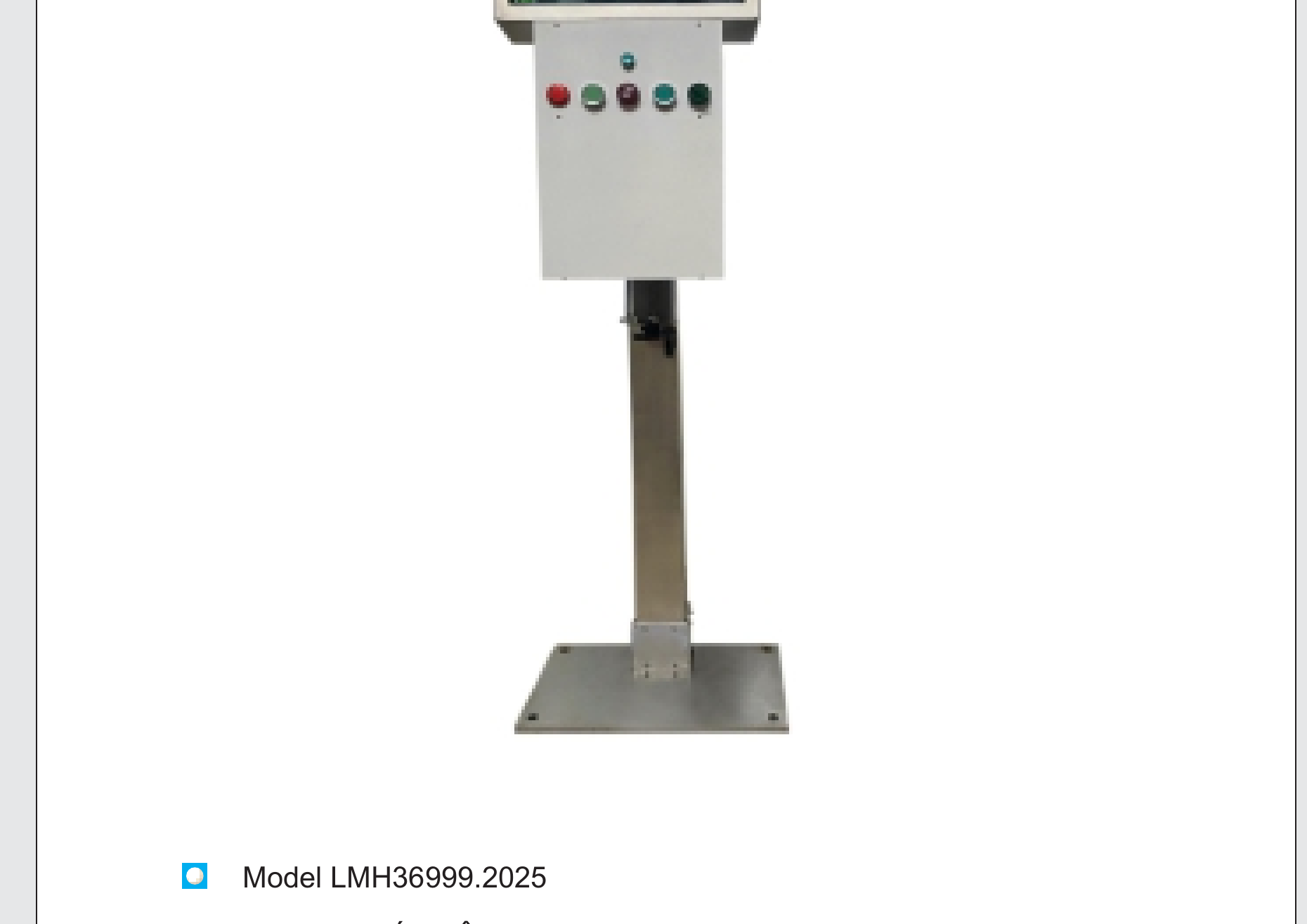

Mechanical Frame

1. Mechanical Dimensions & Machine Structure

Detailed physical dimensions (1600 x 930 x 500 mm), frame mounting points, and electrical cabinet layout for turnkey line integration.

View High-Res Schematic

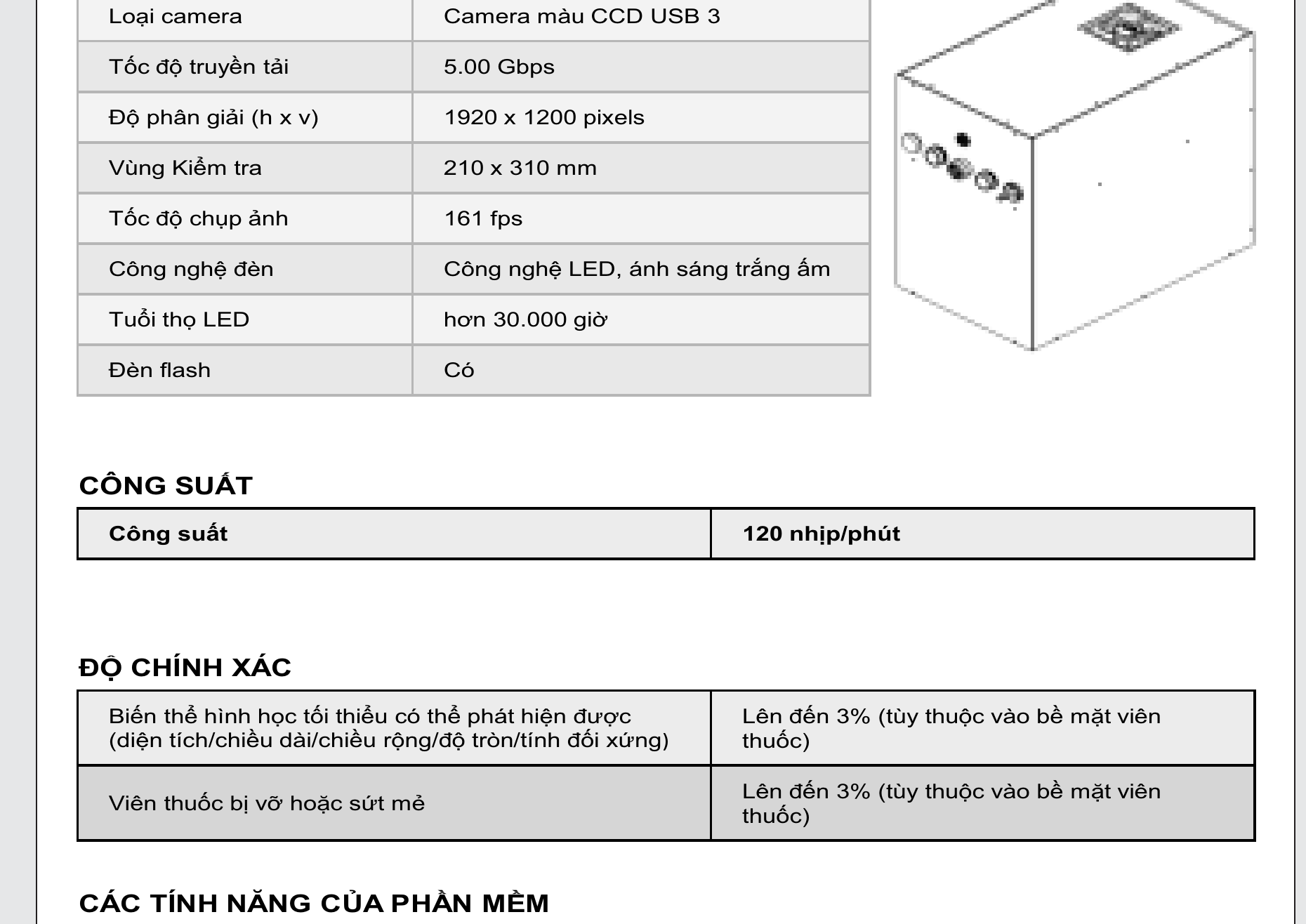

Optics Subsystem

2. Optical Hardware & Strobe Lighting

High-speed industrial USB 3.0 CCD sensor (1920x1200 @ 161 FPS), warm white LED array with synchronized flash, and 210x310 mm FOV area.

View High-Res Diagram

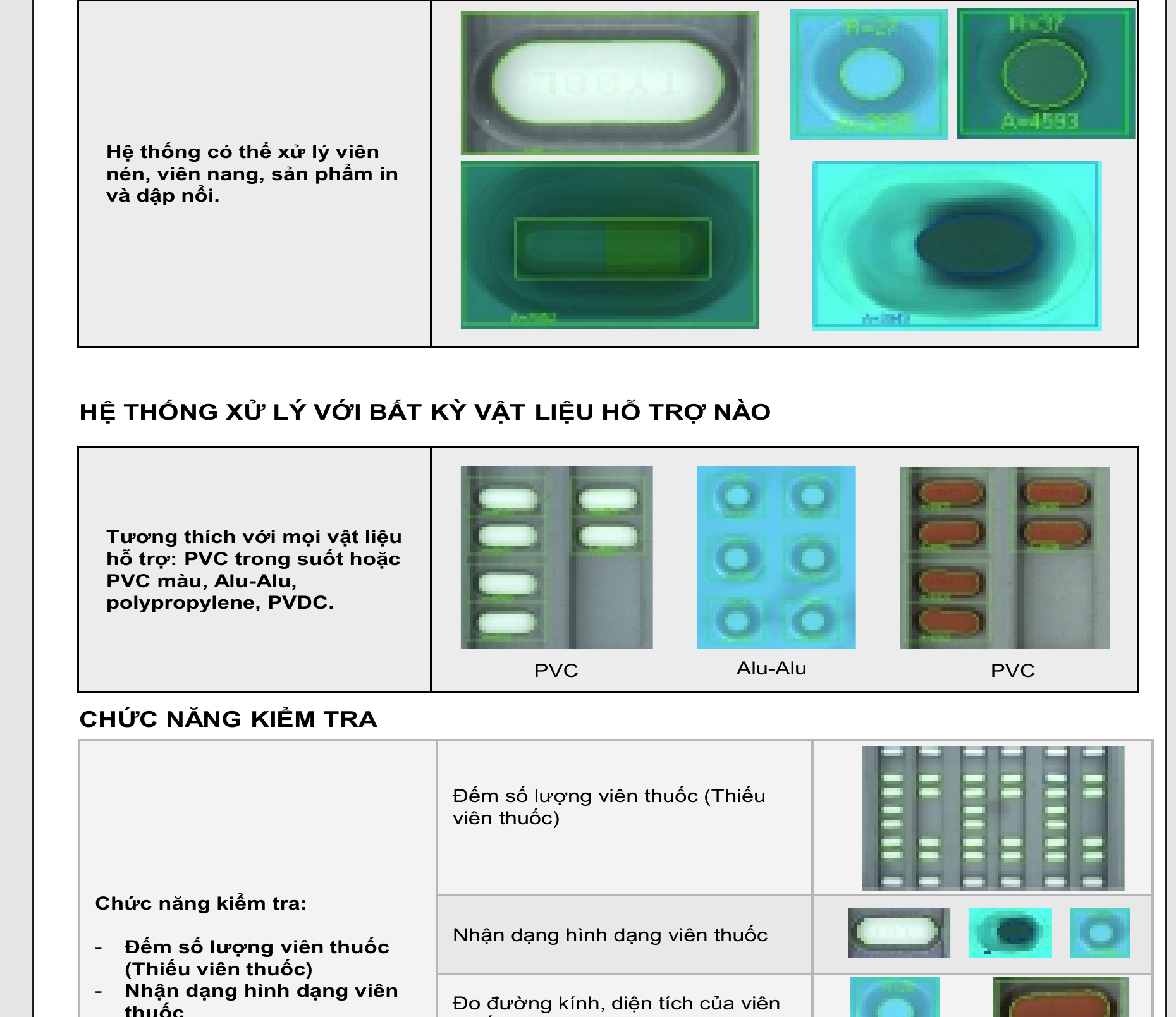

Defect Matrix

3. Defect Classification & Inspection Matrix

Official defect verification samples: 100% missing tablet check, cracked/chipped pills, micro-black spots (>1x1mm), and foil seal integrity.

View Defect Samples

Official Engineering Datasheet

Comprehensive Technical Specifications

Data standardized from official engineering documentation by Lien Minh Hung.

1. Mechanical & Operational Specifications

Physical dimensions & electrical power

Overall Dimensions: 1600 x 930 x 500 mm

Total Machine Weight: 57 kg

Power Supply: 230 VAC ± 10%, 50/60Hz

Operating Current: 5 A

Max Line Capacity: 120 cycles/min

Defect Detection Precision: ≤ 3%

2. Optical & Camera System

High speed CCD sensor & strobe flash

Camera Type: Color CCD USB 3.0 (5.00 Gbps)

Effective Resolution: 1920 x 1200 px

Maximum Frame Rate: 161 fps

FOV Inspection Field: 210 x 310 mm

Illumination Technology: Warm White Industrial LED Array

LED Lifespan & Strobe: > 30,000 Hours (Synchronized Strobe)

3. Defect Inspection Coverage

Quality criteria & reject parameters

Pocket Presence: 100% missing tablet detection

Color & Foreign Particles: Black spots > 1x1 mm, wrong color

Tablet Defects: Cracked, chipped, missing corners, deformed

Film & Foil Defects: Coating peel-off, micro pinholes, debris

Print & OCR Inspection: Embossed text, batch code, pinhole check

4. Software Intelligence & Packaging Materials

AI Logic & Materials

Lighting Auto-Compensation: Automatic brightness variation adaptation

Tablet Alignment Logic: AI Self-learning of new product models

Defect Image Logging: Real-time HDD logging and defect capture

Remote Diagnostics: Remote setup and diagnostics over LAN/WAN

Software Language: International Standard English GUI

Supported Packaging Foil: Clear PVC, Color PVC, Alu-Alu, PP, PVDC
